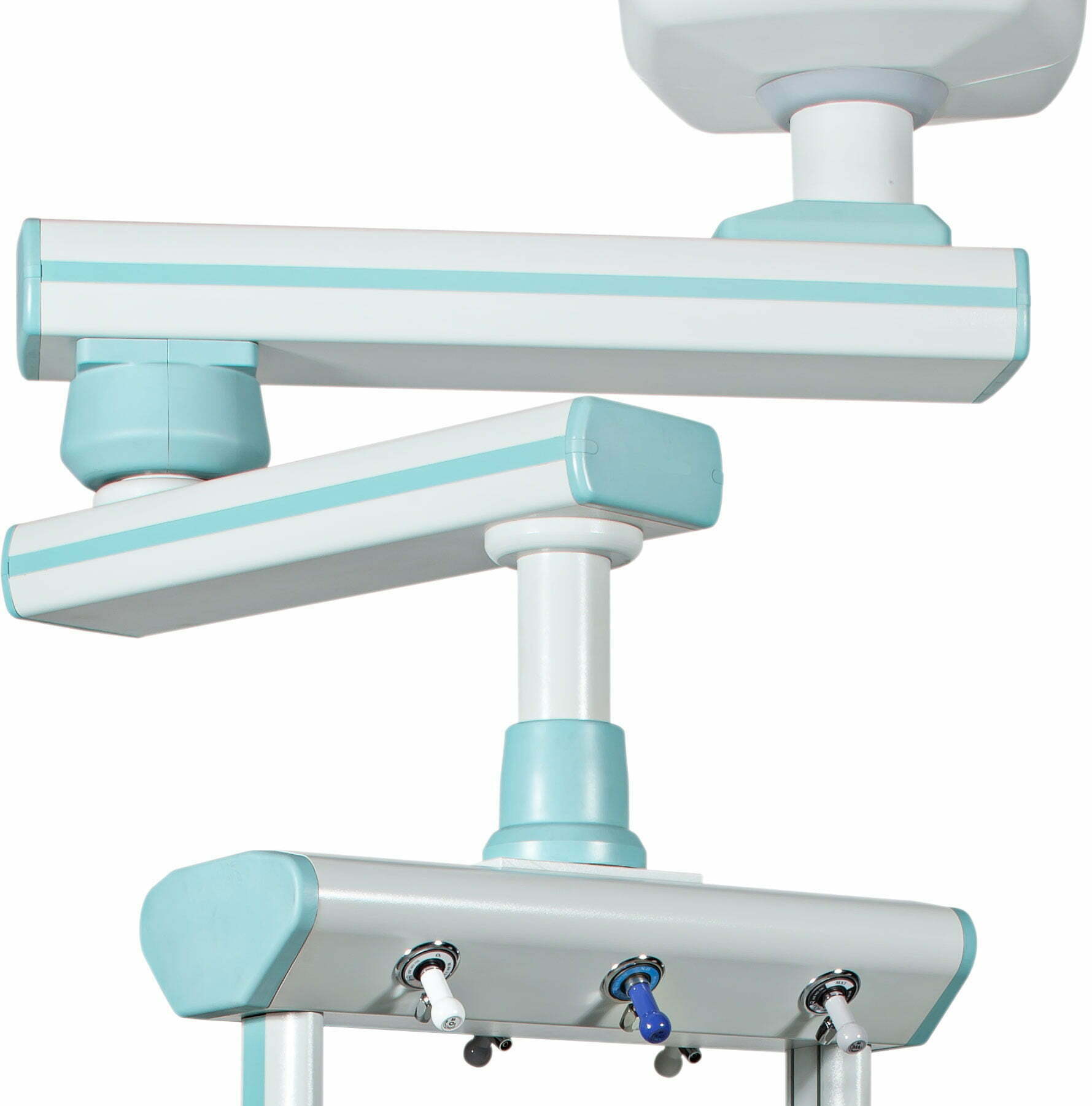

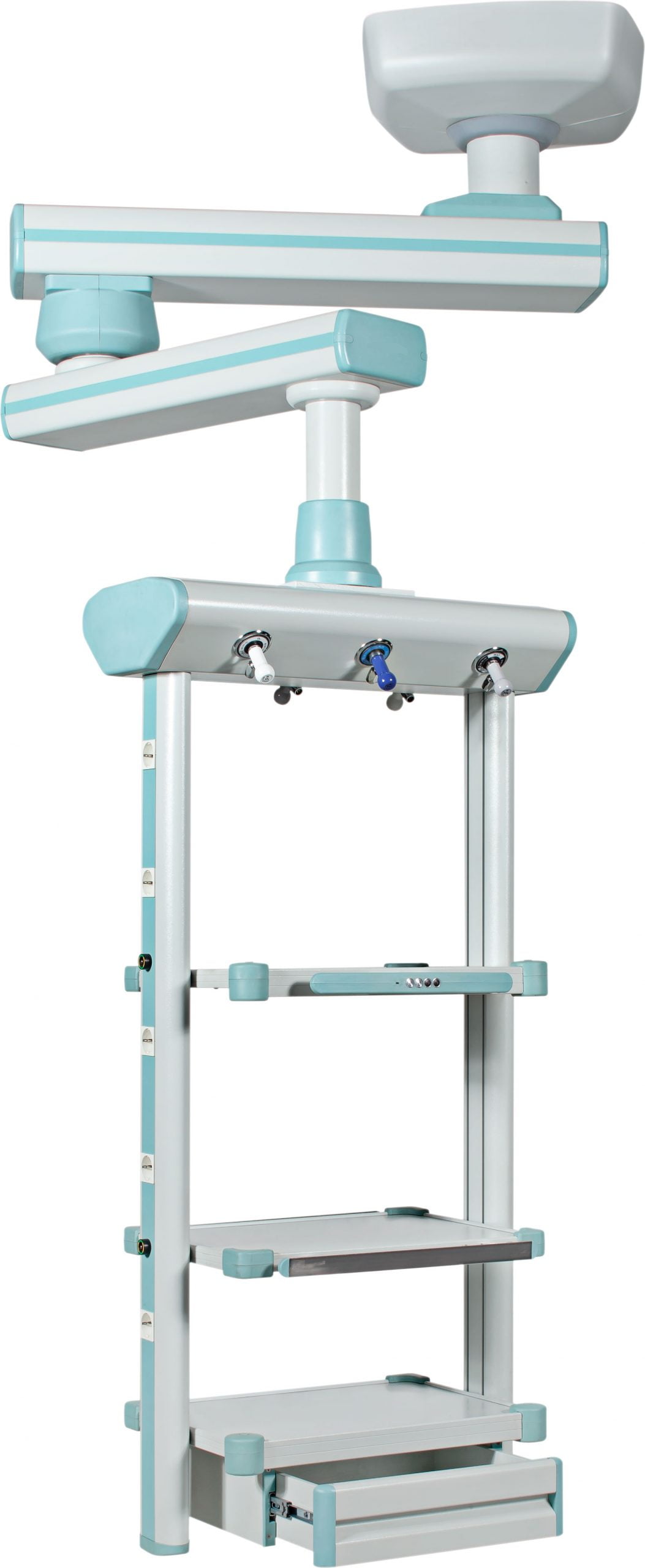

6- Double Arm Pendant – Anesthetic Head

Description

Product Code: MG-PENx-D-A

Installation Space: High movement and space to operate. 3 Joints and double extension arm is rotatable around its horizontal axis up to 340 degree.
Standard Item’s Technical Specifications (1 Single):
Product Code : MG-PENx-D-A x: a
(Anesthetic), c (Surgery), g (General)
Product Name : Double Arm Pendant – Anesthetic Head
Number of Joints : 3
Carriage Capacity : Max 100 Kg
Gas Equipment : Variable according to project
Electrical Equipment : 8 X Electric Sockets, 4 X Earthing Node
Operating Temperature : (+10) – (+45) C°
Power Supply : 220 V 50 Hz
Horizontal Arm Length : 2 x 80-100 cm
Packaging Type : Wrapped Package
Package Sizes : 152 x 78 x 51 cm & 107x14x26 cm &
112x26x14 cm & Size of upper ceiling connection part
Product Weight : 158Kg & upper ceiling connection part
Product Main Raw Material : Aluminum Extrusion Profile
Color : RAL 7035 & RAL 6034
Monitor Stand : 2 Pcs
Monitor Stand with Drawer : 1 Pcs
Accessories:
Gas outlets, IV Stands, instrument basket, vacuum carrier.
