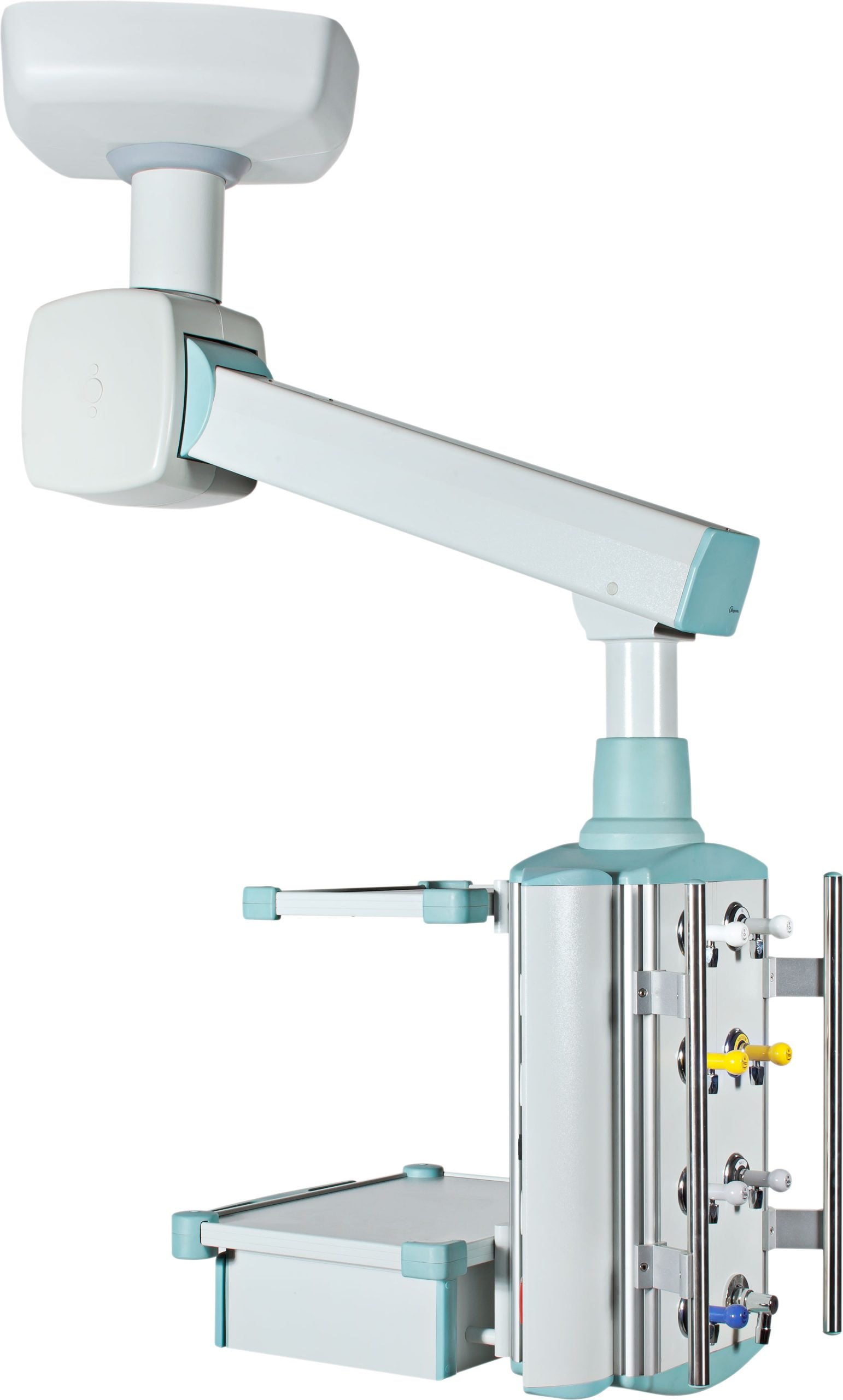

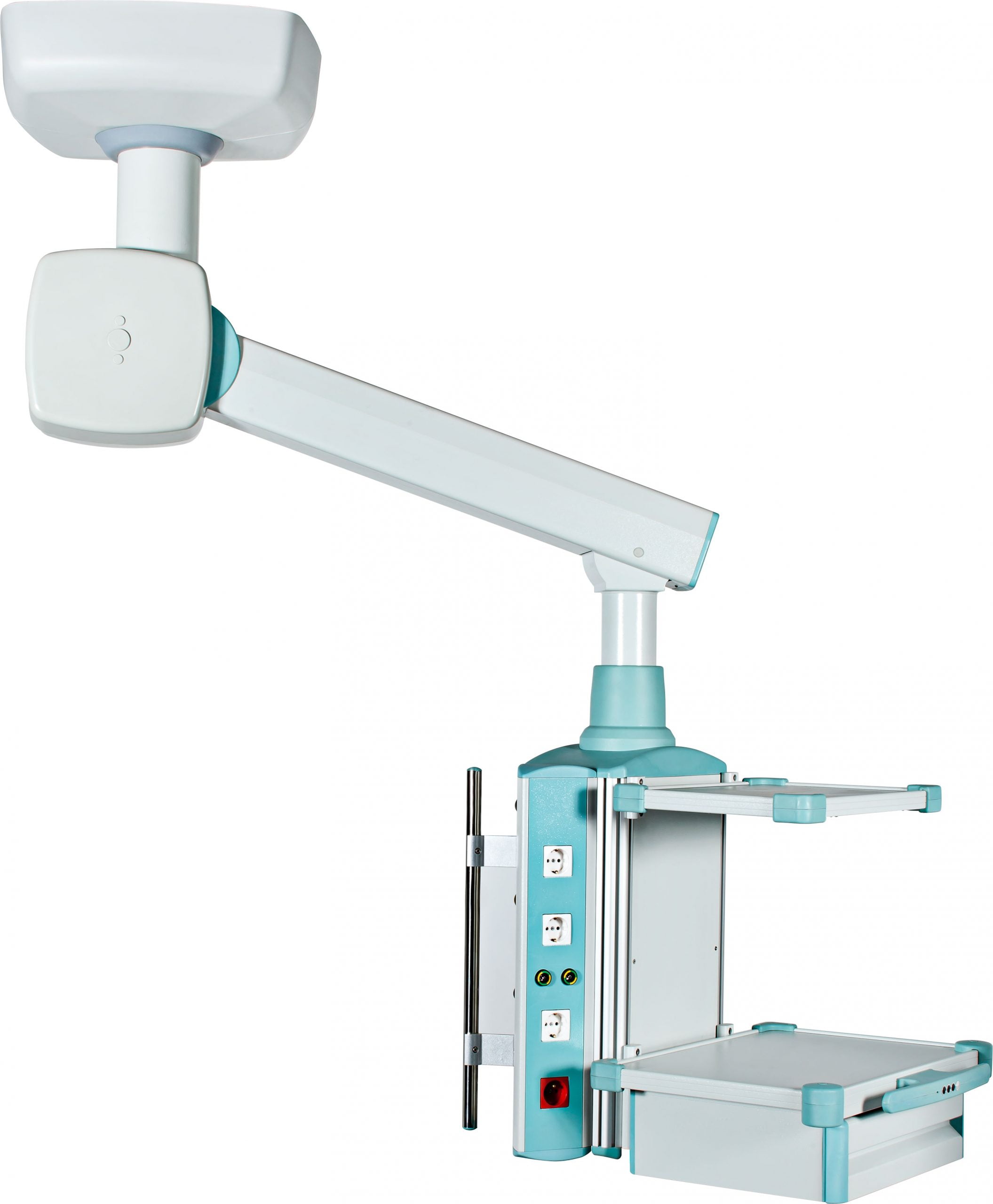

7- Single Arm Pendant – Engine Driven Standard

Description

Product Code: MG-PENx-M-S

Installation Space: High movement and space to operate. 2 Joints and single extension arm is rotatable around its horizontal axis up to 340 degree. Arm lift enables vertical movement up to 65 cm.
Standard Item’s Technical Specifications:
Product Code : MG-PENx-M-S x: a (Anesthetic), c (Surgery), g (General)
Product Name : Single Arm Pendant – Engine Driven Standard
Number of Joints : 2
Carriage Capacity : Max 100 Kg
Vertical Movement : 65 cm
Gas Equipment : Variable according to project
Electrical Equipment : 8 X Electric Sockets, 4 X Earthing Node
Operating Temperature : (+10) – (+45) C°
Power Supply : 220 V 50 Hz
Horizontal Arm Length : 80-100 cm
Packaging Type : Wrapped Package
Package Sizes : 80 x 62 x 70 cm &112x14x26 cm & Size of upper ceiling connection part
Product Weight : 125Kg & Upper ceiling connection part
Product Main Raw Material : Aluminum Extrusion Profile
Color : RAL 7035 & RAL 6034
Monitor Stand : 1 Pcs
Monitor Stand with Drawer : 1 Pcs
Accessories:
Gas outlets, IV Stands, Instrument basket, Vacuum carrier.
