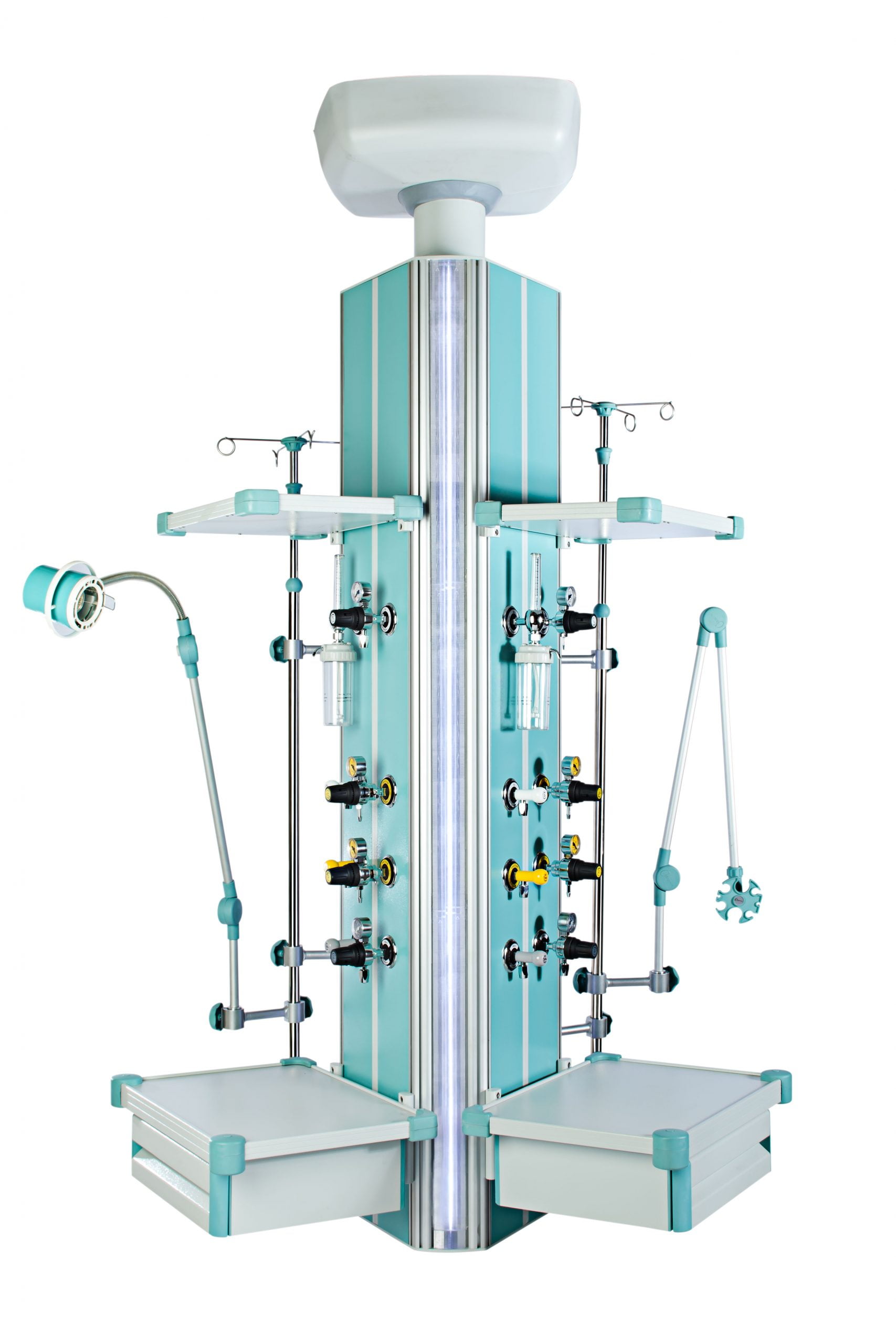

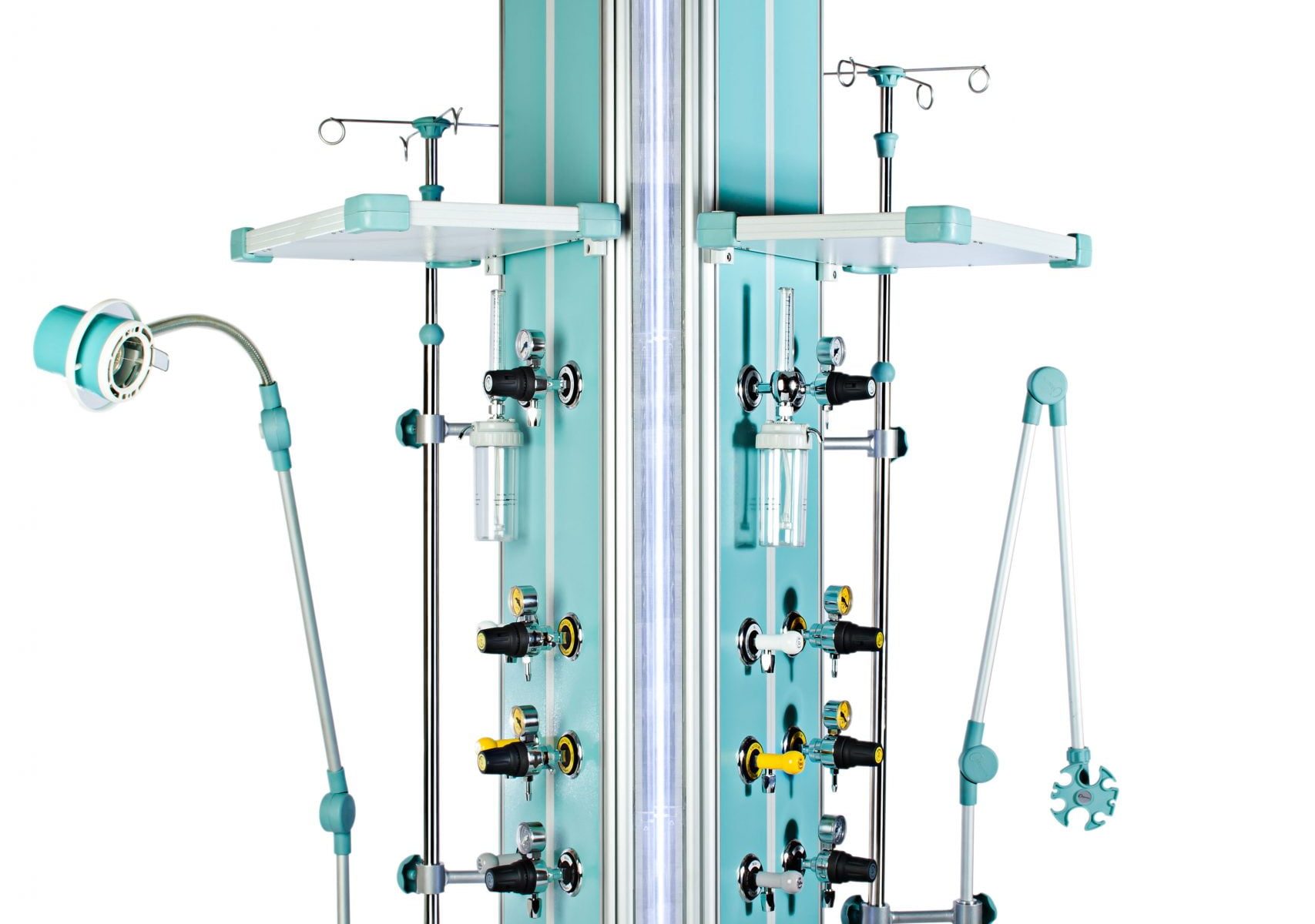

9- Toblerone Intensive Care Unit Suspended Type

Description

Product Code: MG-YOT-A

Installation Space : In front of window and non-flat walls.
Applications for middle of room; suspended on the ceilings.
Technical Specifications (for 2 Patient):
Product Code : MG-YOT-A
Product Name : Toblerone Intensive Care Unit Suspended Type
Loading capacity of Accessories : Max 100 Kg
Gas Equipment : 6 x O2, 6 x Vac, 4 x MA4 gas outlets

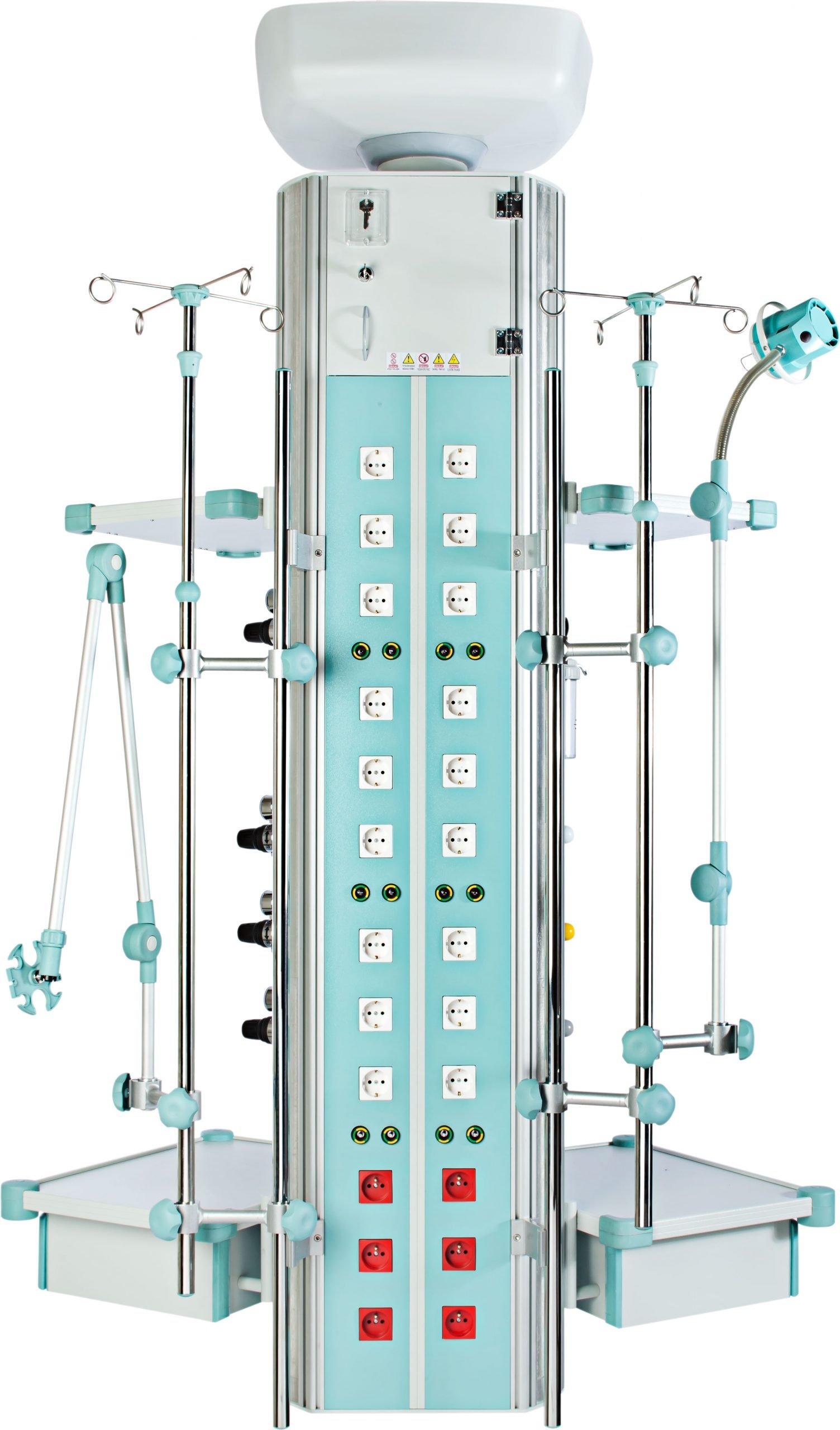

Electrical Equipment : 24 X Electric sockets, 8 X Earthing Node
Operating Temperature : (+10) – (+45) C°
Power Supply : 220 V 50 Hz
Length : 181 cm + celling connection part length
Packaging Type : Wrapped Package
Package Sizes : 183 x 69x 34 cm
Product Weight : 101 Kg + Celling connection part
Product Main Raw Material : Aluminum extrusion profile & Stainless steel & Profile
Body Color : Anodized
Front panel Color : RAL Colors
Monitor stand : 2 Pcs
Shelf with drawer : 2 Pcs
Accessories :
IV Stands, monitor stands, instrument basket, bowl,
catheter bowl, vacuum jar, articulated arm, hose holder, gas outlet adapters.
