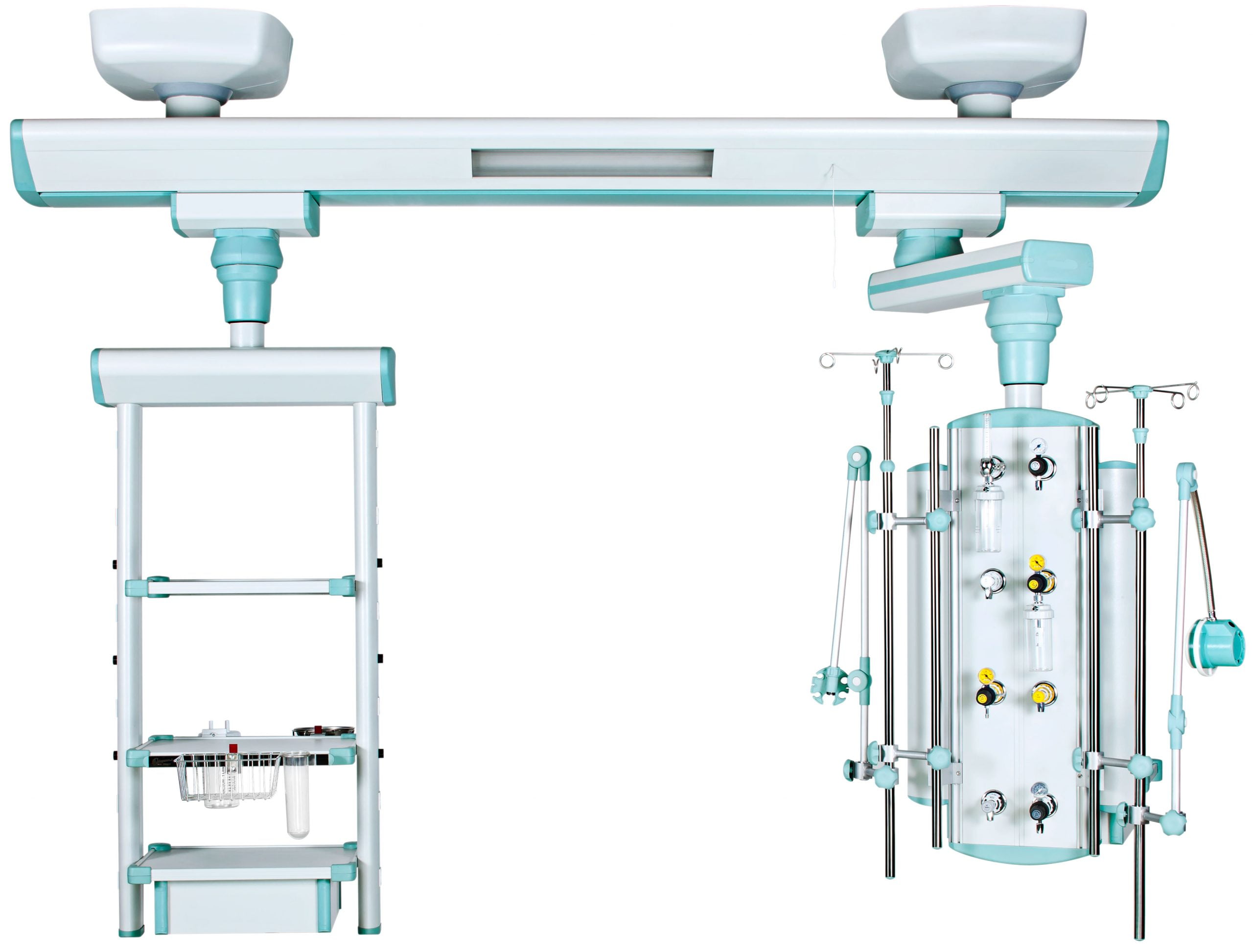

12- Sliding Type Intensive Care Unit

Description

Product Code: MG-YBP-C



Installation Space : In front of window and non-flat walls. Applications for middle of room; suspended on the ceilings.
Technical Specifications:
Product Code : MG-YBP-C
Product Name : Sliding Type Intensive Care Unit
Loading capacity of Accessories : Max 100 Kg
Gas Equipment : 3 x O2, 3 x Vac, 2 x MA4 Gas outlets
Electrical Equipment : 12 X Electric sockets, 4 X Earthing Node, 18 W Light
Operating Temperature : (+10) – (+45) C°
Power Supply : 220 V 50 Hz
Length : 220 – 290 cm
Packaging Type : Wrapped Package
Package Sizes : 295 x 20 x 34 cm & 110x59x57 & 105x24x11 cm & Carrier Arms
Product Weight : 210 Kg + Celling connection part
Product Main Raw Material : Aluminum extrusion profile & Stainless Steel & Profile
Body Color : RAL 7035
Front panel Color : RAL 6034
Monitor stand : 3 Pcs
Shelf with drawer : 2 Pcs

Accessories :
IV Stands, monitor stands, instrument basket, bowl, catheter bowl, vacuum jar,
articulated arm, hose holder, gas outlet adapters
