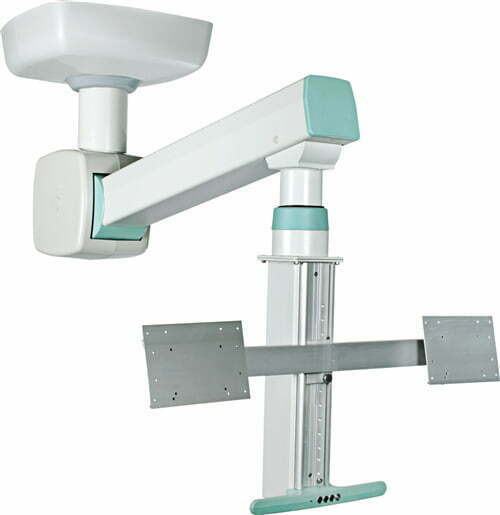

22- Single Arm Pendant-Engine Driven Anesthetic Device Carrier

Description

Product Code: MG-PEN-MT

Installation Space: Mounted on the ceiling by straight connection support and rotatable around its vertical axis up to 340 degree.
Standard Item’s Technical Specifications (1 Single):
Product Code : MG-PEN-M-T
Product Name : Single Arm Pendant
Engine Driven Anesthetic Device Carrier
Number of Joints : 2
Carriage Capacity : Max 100 Kg
Vertical Movement : 65 cm
Gas Equipment : Variable according to project
Electrical Eqpt. : 2 X Electric Sockets, 2 X Data Socket
Operating Temp. : (+10) – (+45) C°
Power Supply : 220 V 50 Hz
Horizontal Arm Length: 80-100 cm
Packaging Type : Wrapped Package
Package Sizes : 80 x 62 x 70 cm & 112x14x26 cm & Size of upper ceiling connection part
Product Weight : 107Kg & upper ceiling connection part
Raw Material : Aluminum Extrusion Profile
Color : RAL 7035 & RAL 6034
Monitor Stand : 2 Pcs
Accessories:
Gas outlets, IV Stands, instrument basket, vacuum carrier
Origin: Turkey
