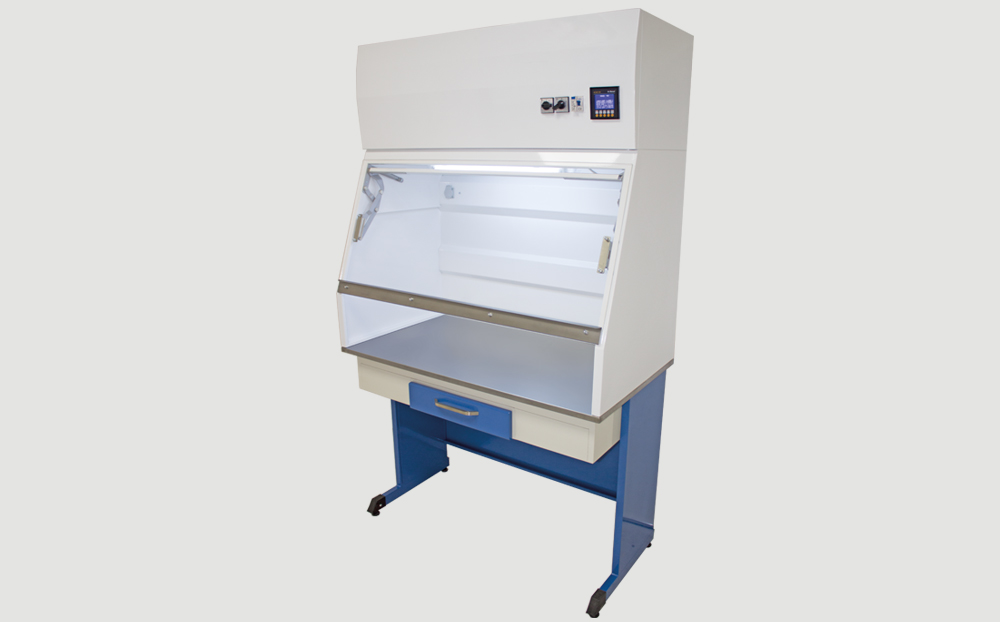

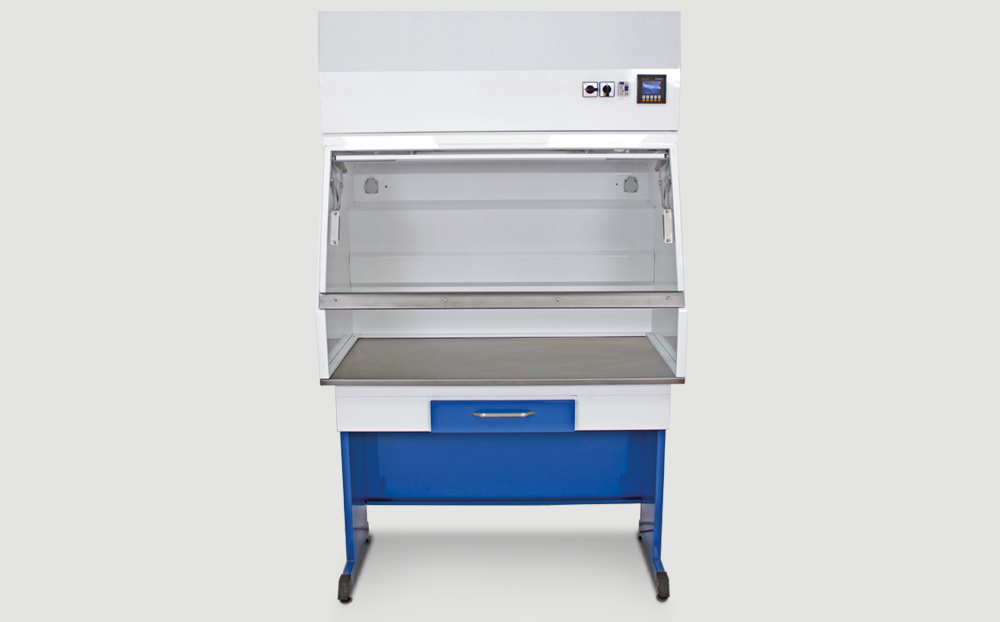

AC 105 Acrylic Fume Hood

All harmful fumes, vapours, and agents which can occur during mixing an acrylic resin or flasking in a dental laboratory are eliminated with the adequate carbon filter system and powerful suction of the AC-105. The technician’s health is kept as our main goal so we provide a closed cabin and a suitable A304 Cr/Ni stainless steel worktop. This unit comes in different dimensions and is, therefore, an appealing factor for small or large laboratories.

Technical Details:

• INOX “A304 Cr/Ni” stainless steel working surface on 1,20mm strong main body
• Phosphate coated base before further powder paint coating
• The internal cabin wiring is grounded, with 3 x 1,5 mm2 diameter SIHO-S5
• (-60 °C / + 250 °C) cable and heat resistant
• Suitable sockets within the cabin

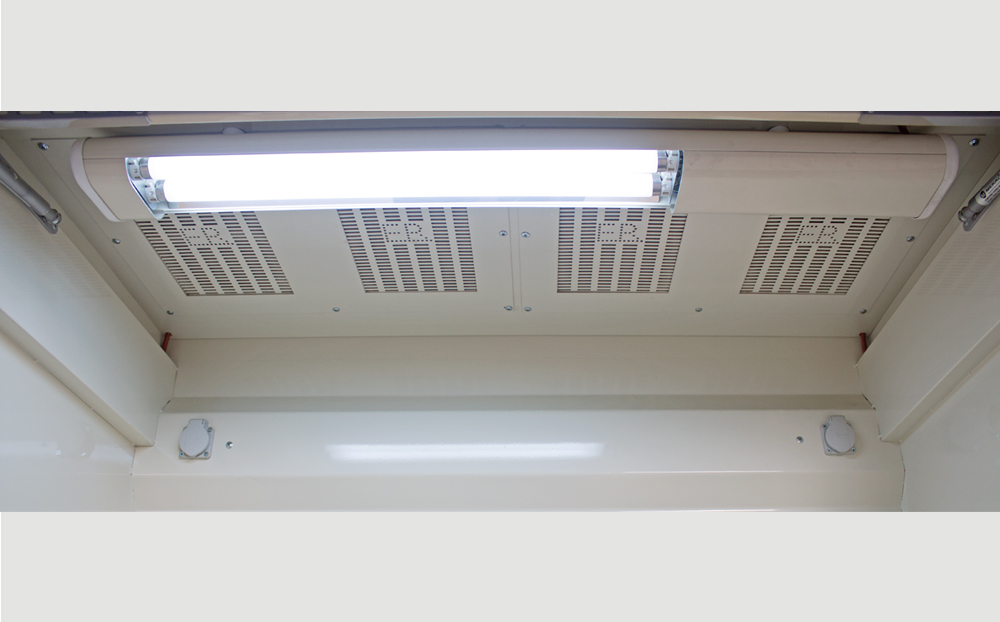

• Internal lighting system
• 5-level, polypropylene encased, compressed air driven vacuum engines with 1100 m3/h suction power are allocated and placed according to the size of the cabin
• The cabin is operated via the digital screen on the front panel by which a full control and observation of all essential functions such as working time, inner and outer heat development data, sution power, and all warnings, are possible
• Changeable fume hood filter cassettes according to ENVIROCARB Carbon Filter standards

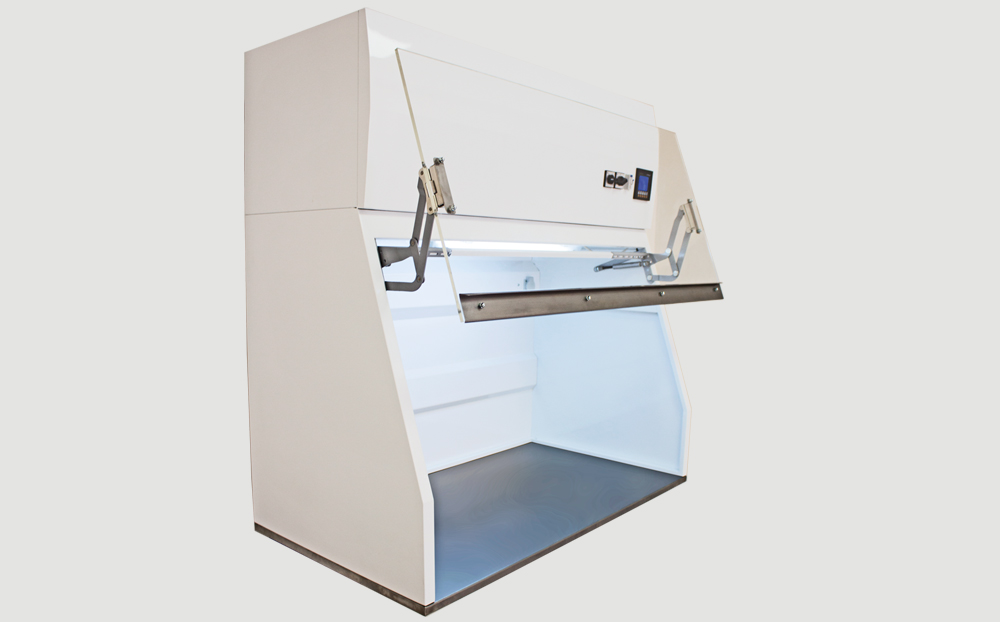

• Parallel lift-up suitable plexy glass lid
• Complete storage drawer tile on the lower half for operating in sitting position
• 220/230 V 50-60 Hz

Dimensions:

• AC-105/A : 65 x 80 x 211 cm (h)
• AC-105/B : 65 x 120 x 211 cm (h)
• AC-105/C : 65 x 160 x 211 cm (h)
